SWCNT Slurry| Single-Walled Carbon Nanotube Conductive Additive
Lower percolation threshold than carbon black and MWCNT.
Introduction
Single-Walled Carbon Nanotube Dispersion

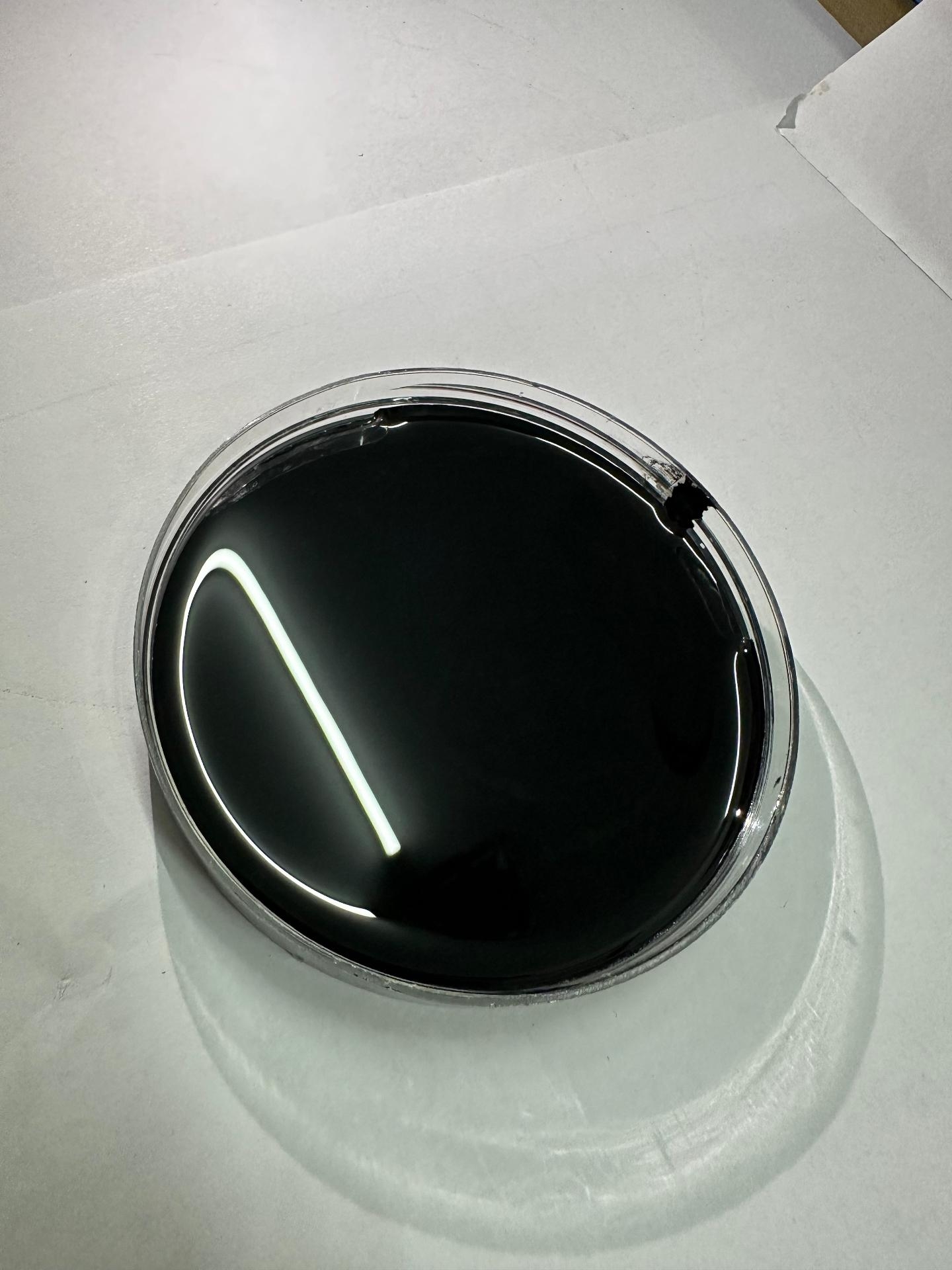

SWCNT slurry is a high-conductivity, pre-dispersed formulation of single-walled carbon nanotubes. It provides fast, uniform dispersion in plastics, coatings and battery materials, enabling ultra-low loading, stable resistivity and clean processing in water or NMP.
Product Grades
| Grade | CNT Type | Solvent | Concentration |
|---|---|---|---|
| SWCNT-A | EC1.5-P | Water | 0.1–0.4 wt% |
| SWCNT-B | EC2.0-P | NMP | 0.05–0.3 wt% |
Comparison vs Carbon Black
| Property | SWCNT Slurry | Carbon Black |
|---|---|---|
| Typical Loading | 0.02–0.1% | 1–5% |
| Color Impact | Low | High (blackening) |
| Conductive Network | Stable at low dosage | Requires high loading |
| Processing | Easy (pre-dispersed) | Difficult (powder agglomeration) |
Product Parameter
| Model | SWCNT Concentration | Dispersion Medium | CNT Type | CNT Diameter | Minimum Package |
|---|---|---|---|---|---|
| YXL-DL | 0.05 wt% | H₂O | EC1.5-P | 1.5–2.5 nm | 1000 mL |
| YXL-DH | 0.2 wt% | NMP / organic | EC1.5-P | 1.5–2.5 nm | 1000 mL |
| YXL-PB | 0.4 wt% | H₂O | EC2.0-P | 2–3 nm | 1000 mL |
| YXL-PBN | 0.4 wt% | NMP / organic | EC2.0-P | 2–3 nm | 1000 mL |
Product feature
Introduction
Our SWCNT slurry is formulated using high-aspect-ratio single-walled carbon nanotubes (eDIPS process). Through proprietary dispersion technology, the CNT network remains stable and uniform in water, NMP, ethanol and mixed systems. It is designed for ESD plastics, conductive coatings, printed electronics and battery electrode additives.
- Excellent dispersibility in water, NMP and ethanol
- Long-aspect-ratio SWCNTs preserved during dispersion
- Ultra-low loading to achieve target resistivity
- Compatible with PC/ABS, PA, PBT, TPU, epoxy, PU and more
- Customizable concentrations and solvent systems
- Cleaner, easier processing vs. dry CNT powders
Technical FAQ
1. What is SWCNT slurry?
A ready-to-use dispersion of single-walled carbon nanotubes for plastics, coatings, and battery applications.
2. Why is it better than CNT powder?
Pre-dispersed slurry avoids agglomeration, improves consistency, and reduces mixing time.
3. What is the typical dosage?
ESD plastics: 0.02–0.1% depending on resin and resistivity target.
4. Is it compatible with PC/ABS and PA?
Yes. It performs well in PC/ABS, PA6, PA66, PBT, TPU, PU, and epoxy systems.
Application area
- Lithium-Ion Batteries
- EMI Shielding & Conductive Coatings
- Sensors
- Transparent Electrodes
- Polymer Matrix Composites
- Supercapacitors
- Semiconductor Electronics
- Printed & Flexible Electronics
- Photonics & Optoelectronics
- Quantum Devices
